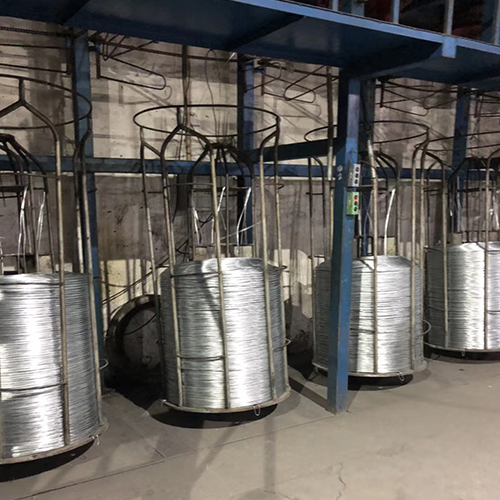

Electro Galvanized Wire Production Line

0.5-1.2mm Electro-galvanized wire production line

1. Design basis:

Product: Low-carbon galvanized steel wire;

DV value: ≤60mm·m/min;

Thickness of zinc layer: ≤15g/㎡;

Steel wire strength: 400～600MPa;

       Wire diameter: 0.5-1.2mm;

Number of steel wire: 50 lines;

Line spacing: 24mm, bus spacing 1280mm;

Traveling elevation: 800mm;

Workshop length: The shortest length is 75m;

Travel mode: plating solution circulation, straight forward;

Output: wire diameter 0.5mm, wire speed 80m/min, efficiency 90%, output of 50 wires 3.3 tons/10h;

The wire diameter is 0.7mm, the line speed is 70m/min, the efficiency is 90%, and the output of 50 wires is 5.7 tons/10h;

The wire diameter is 0.9mm, the wire speed is 60m/min, the efficiency is 90%, and the output of 50 wires is 8.0 tons/10h;

The wire diameter is 1.2mm, the line speed is 50m/min, the efficiency is 90%, and the output of 50 wires is 12 tons/10h;

Heating method: electric heating for drying.

Use energy: electric power 380V 50Hz, total power distribution 100KW.

1.9-3.55mm Electro galvanized wire production line

1. Design basis:

Product: Low-carbon galvanized steel wire:

DV value: ≤60 mm.m/min;

Thickness of zinc layer: ≤20g/㎡;

Steel wire strength: 400～600MPa

Wire diameter: 1.9-3.55mm;

Number of steel wires: 40 wires;

Line spacing: 35mm, bus spacing 1450mm;

Traveling elevation: 800mm;

Workshop length: The shortest length is 100m;

Traveling mode: circulating plating solution, straight forward;

Output: wire diameter 1.9mm, wire speed 32m/min, efficiency 90%,

The output of 40 filaments is 15 tons/10h;

The diameter of the wire is 2.0mm, the wire speed is 30m/min, the efficiency is 90%, and the output of 40 wires is 16 tons/10h;

The diameter of the wire is 2.5mm, the wire speed is 24m/min, the efficiency is 90%, and the output of 40 wires is 20 tons/10h;

The diameter of the wire is 3.0mm, the wire speed is 20m/min, the efficiency is 90%, and the output of 40 wires is 24 tons/10h;

Heating method: electric heating for drying.

Use energy: Electricity 380V 50Hz, total installed capacity 250K
