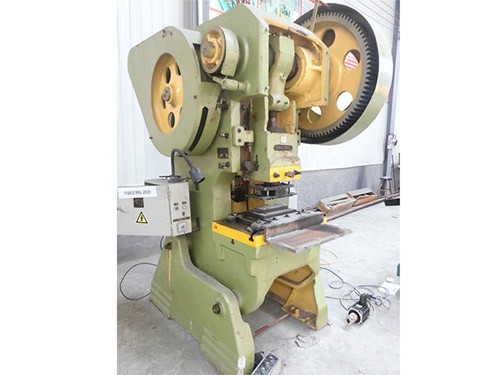

Perforated Metal Machine

  • US $35,000-40,000/Set
  • 1 Set/Sets
  • 15 Set/Sets per Month
  • Tianjin
  • T/T, LC, D/A, D/P, O/A
Quantity:

Perforated-metal-machine.pdf

Perforated metal machine is designed for manufacturing of perforated metal sheets of various materials. The metallic materials include iron plate, stainless steel plate, copper plate, aluminum plate, galvanized plate etc.

Nonmetallic material: Fibre plate, plastic plate, film etc.

The shape of the hole we can serve: round hole, long round hole, square hole, triangle hole, diamond hole, hexagonal hole, crossed hole etc.
J21Sseries general deep-throat press

Main Features:
1. Increased throat deep and working area.
2. Adopts horizontally palced crankshaft
3. Rigid rotated bond clutch.
4. Manual shut height adjustment withj scale display
5. The type with"A" equipped with emergency stop device,which could make the slide stop ai 0~135area and equipped with light curtain protechor as well

Press Specifications


J21S-6.3

J21S-10

J21S-16

J21S-25A

J21S-40A

J21S-63A

J21S-80A

JD21S-100A

JD21S-125A

Nominal force

KN

63

100

160

250

400

630

800

1000

1250

Stroke under nominal force

mm

2

2

2

2.5

4

4

5

6

6

Slide block stroke

Mm

35

60

70

80

120

120

130

140

140

Number of stroke

Min-1

170

145

125

60

55

50

45

38

38

Max die set height

Mm

110

130

170

180

220

270

290

320

320

Die set height adjusdment

mm

30

35

45

70

80

80

100

100

100

Distance from slide block centre to the frame

mm

400
700

400
700

400
700

400
700

400
710

450
800

450
800

450
760

450
760

Worktable dimensions(f.b*l.r)

mm

200
310

240
360

320
480

400
600

480
710

480
710

4580
610

710
1100

720
1200

Dimensions of worktable hole (diameter*f*b*l*r)

mm

Φ60

Φ120
120
Φ100

Φ100

Φ120

Φ220
45
Φ180

Φ200
45
Φ180

Φ200
45
Φ180

Φ260
50
Φ220

Φ260
50
Φ220

Thickness of bolster

mm

40

50

60

70

80

90

100

120

120

Holedimensions in bed (diameter*f*b*l*r)

mm

Φ140
110
160

Φ130
90
180

Φ210
160
240

200
200

200
240

200
250

220
260

260
290

260
290

Dimensions of side block bottom surface(f*b*l*r)

mm

120
140

150
170

180
200

210
250

270
320

280
320

280
380

420
560

420
560

Size of the handle hole (diameter *depth)

mm

Φ30
55

Φ30
55

Φ40
60

Φ40
70

Φ50
70

Φ50
80

Φ60
75

60
80

Φ60
80

Distance between columns of body

mm

162

182

220

350

390

450

450

580

580

Motor

Type


Y2-90S-6

Y2-90L-6

Y2-100L-6

Y2-100L1-4

Y2-132M1-6

Y2-132M1-6

Y2-160M-2

Y2-160M-6

Y2-160L-6

power

Kw

0.75

1.1

1.5

2.2

4

5.5

7.5

7.5

11

Outline dimension(f*b*l*r*h)

mm

1540
700
1520

1620
730
1800

1680
840
1880

1790
990
2288

1965
1180
2295

2220
1350
2600

2220
1380
2650

2530
1555
2990

2550
1610
2990

Net/gross weight

kg

820
920

1060
1160

1940
2185

2860
3360

4400
5100

5500
6300

6020
6820

12500
13800

13500
14800

Numeral control feeding system
Main Features:
*X-Y axes linkage,Z axis start-stop control;
*Two axes simultaneous Manual or Automatic referencing;
*Standard NC code programming,Multi functional codes;
*Decimal Data input;
*Program imput via PC keyboard,CRT display;
*Simulation and Emulation;
*Real-tme status display in the emulation window;
*Power-off protection,Breakpoint setting;
*Printing continuous punching;
*Jog and continous punching;
*Servo driver or step driver.
