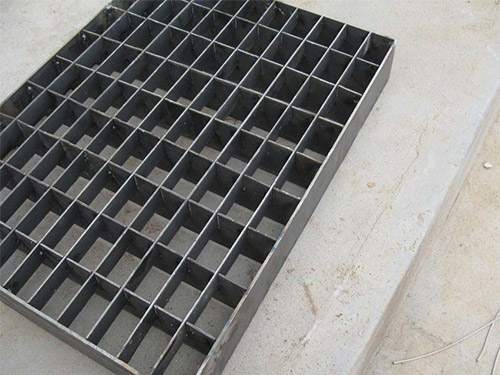

Plug Steel Grating

  • US $35-150/Sheet

  • 100 Sheet/Sheets

  • 10000 Metric Ton/Metric Tons per Month

  • Tianjin

  • T/T, LC, D/A, D/P, O/A

Availability:
Quantity:

Plug-Steel-Grating.pdf

Plug Steel Grating is larger carrying capacity of a certain size of ordinary Q235 low carbon flat steel ,stainless steel, brass plate , aluminum plate slotted ( hole ) , plug , welding , finishing processes made of one kind steel grating product solder firmly Pitch uniform , flat surface , beautifully designed , functional , both the use of goods , but also a work of art .It has the feature of high-strength , corrosion, maintenance features, and unique combination of homogeneous precision , light.

Plug Steel Grating is widely used in residential and commercial buildings , theaters , metro , suburban railway and municipal engineering field ,the product has many characteristics of lightweight,high-strength , anti-corrosion , maintenance free , beautiful , and is now widely used in residential and commercial buildings,theaters , metro, suburban railway and municipal engineering for steel grating ceiling , indoor and outdoor decorating decoration , platform aisle , ventilation windows ( wells ) , advertising plaque , a variety of cover.

Uses:

Plug-Steel-Grating


Raw Materials
Our raw materials are procured only from reputable sources that we regularly visit and audit.
Our material suppliers are all ISO 9001 certified and we procure our raw materials to the following minimum standards and grades:
ASTM A1011M (American Standard)
BS EN 10025 Grade S275 JR (British Standard and European Norm)

Manufacturing Standards
We manufacture our gratings to many international standards of which the most common are:
ANSI/NAAMM MBG 531-00 (American National Standard)
BS 4592-1:2006 (British Standard)

Welding
Our welders are tested and approved to the following standards:
AWS D1.1:2010 (American Welding Standard)
BS EN 287-1:2004 (British Standard and European Norm)

Hot Dip Galvanized
Our products are hot dip galvanized (if required) to the following standards:
ASTM A123 (American Standard)
BS EN ISO 1461:2009 (British Standard and European Norm)

Manufacturability

Technological Process
(1) Material
(2) Pressure Welding
(3) Cutting
(4) Welding of Ends Bar
(5) Hot Dipped Galvani-zation
(6) Final Shipment

process

process



Keys for installing the Gratings

The cross bars should be on the top while installing the gratings. The gratings should be always firmly attached onto their supports with following methods:

1. Welding Fixed
Suitable for those permanently installed gratings or those which are not to be removed frequently

Welding Fixed

2.Use of Clips and Screws
Suitable for gratings that are to be removed frequently.and won't damage the Grating itself.

Use of Clips and Screws

3.Space for cutouts
When the cut of a corner is necessary while meeting a round obstacle, the diameter of the corner should be at least 50mm wider than that of the round obstacle. All rectangular cutouts are made with a space no wider than that of the flat iron of the graings.

Space for cutouts

packaging
