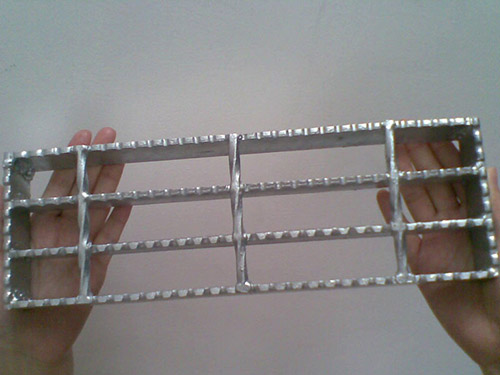

Serrated Steel Grating

  • US $35-150/Sheet
  • 100 Sheet/Sheets
  • 10000 Metric Ton/Metric Tons per Month
  • Tianjin
  • T/T, LC, D/A, D/P, O/A
Quantity:

Serrated-Steel-Grating.pdf

Material: Mild Steel (Low Carbon Steel) or Stainless Steel

Surface Treatment: Untreated, Painting or Hot dip Galvanizing

Steel grating

Specifications of steel gratings

No

Item

Description

1

Bearing bar

20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc.

2

Bearing bar pitch

25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc.

3

Cross bar

5x5, 6x6, 8x8mm (twisted bar or round bar)

4

Cross bar pitch

40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’ requirement.

5

Surface treatment

Untreated, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customers’ requirement.

6

Flat bar type

Plain, Serrated (tooth-like), I bar (I section)

7

Material standard

Low carbon steel (CN: Q235, US: A36, UK: 43A)

8

Galvanization standard

CN: GB/T13912, US: ASTM (A123), UK: BS729

9

Steel grating standards

A. China: YB/T4001-1998

B. USA: ANSI/NAAMM (MBG 531-88)

C. UK: BS4592-1987

D. Australia: AS1657-1988

E: Japan: JJS

Feature:
1). High strength, light structure: solid grid pressure welding structure has advantages of high load, light structure, easy installation, etc.
2). Fine appearance, durable in use: hot zinc dipping surface treatment makes it own fairly good corrosion resistance, bright and beautiful surface.
3). Good ventilation, lighting, thermal, anti-explosion, and anti-skid performance.
4). Prevent dirt deposition.

Application: It is widely used for platform, aisle, trestle, drain cover, manhole cover, steel ladder, fence, and guardrail in the fields including petrochemical, power station, sewage treatment plant, mechanical manufacture, mechanical and electrical equipment, paper mill, cement plant, pharmacy, food processing, municipal engineering, environmental engineering, etc.

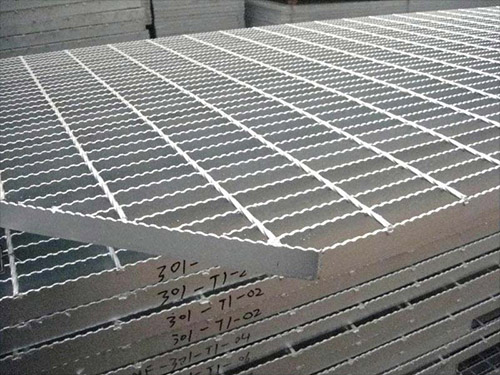

Serrated Steel Grating

Raw Materials
Our raw materials are procured only from reputable sources that we regularly visit and audit.
Our material suppliers are all ISO 9001 certified and we procure our raw materials to the following minimum standards and grades:
ASTM A1011M (American Standard)
BS EN 10025 Grade S275 JR (British Standard and European Norm)

Manufacturing Standards
We manufacture our gratings to many international standards of which the most common are:
ANSI/NAAMM MBG 531-00 (American National Standard)
BS 4592-1:2006 (British Standard)

Welding
Our welders are tested and approved to the following standards:
AWS D1.1:2010 (American Welding Standard)
BS EN 287-1:2004 (British Standard and European Norm)

Hot Dip Galvanized
Our products are hot dip galvanized (if required) to the following standards:
ASTM A123 (American Standard)
BS EN ISO 1461:2009 (British Standard and European Norm)

Manufacturability

Technological Process
(1) Material
(2) Pressure Welding
(3) Cutting
(4) Welding of Ends Bar
(5) Hot Dipped Galvani-zation
(6) Final Shipment

process

process



Keys for installing the Gratings

The cross bars should be on the top while installing the gratings. The gratings should be always firmly attached onto their supports with following methods:

1. Welding Fixed
Suitable for those permanently installed gratings or those which are not to be removed frequently

Welding Fixed

2.Use of Clips and Screws
Suitable for gratings that are to be removed frequently.and won't damage the Grating itself.

Use of Clips and Screws

3.Space for cutouts
When the cut of a corner is necessary while meeting a round obstacle, the diameter of the corner should be at least 50mm wider than that of the round obstacle. All rectangular cutouts are made with a space no wider than that of the flat iron of the graings.

Space for cutouts

packaging
